LDI ROW Stainless Steel Non-Contact Oil Detectors

The ROW Stainless Steel is an autonomous non-contact sensor for the detection of oil on water in corrosive conditions including oil terminals and marine environments.

Features

  • Non-contact detection for easy installation maintenance-free operation
  • Low power consumption of <2W makes it ideal for battery powered systems
  • 5-year LED lifetime with 2-year warranty
Your Price Call
Stock Check Availability

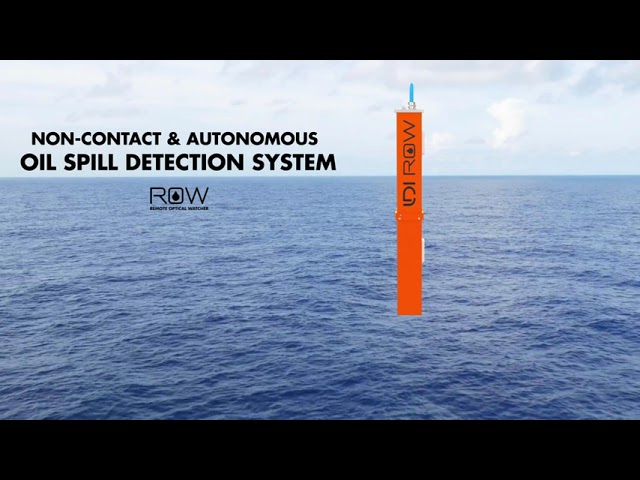

The ROW (Remote Optical Watcher) is a non-contact sensor for detecting oil on water. Highly accurate and easy to maintain, the ROW detects and alerts you to unsuspecting oil spills. It provides 24/7 industrial and environmental water monitoring, whether at effluent discharge or influent intake points.

Detectable oils include motor oils, turbine oils, vegetable oils, lubricant oils, hydraulic oils, mineral oils, fuel oils, marine diesel oils, crude oils, heating oils, gas oils, bunker fuels, diesel, gasoline, kerosene, and aviation fuels.

Questions & Answers
Is the detection limit adjustable on the ROW?
Yes, the user an adjust the alarm threshold using the included software. Alarm signals can be sent via 4-20mA, RS-485 Modbus RTU, and/or through a relay for controlling external devices.
Can the ROW measure the oil dissolved in the water?
Yes, the ROW can detect oil dissolved in water. Because it is using optics, the ROW’s beam can penetrate up to 10-15 cm depth into the water column, depending on distance from surface and turbidity.
Did you find what you were looking for?

Select Options

  Products 0 Item Selected
Part #
Description
Price
Stock
Quantity
LDI ROW Stainless Steel Non-Contact Oil Detectors
O-2311S
ROW Stainless Steel non-contact oil detector, 2m cable
Request Quote
Check Availability
LDI ROW Stainless Steel Non-Contact Oil Detectors
O-4501S
ROW Stainless Steel non-contact light fraction oil detector, 2m cable
Request Quote
Check Availability
